38 Lac / Piece(s)
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Trader |
| Type | Dth Drilling Rig |
| Model Number | DT1000, DT500, DT1500, DT700, DT2000 |
| Brand Name | Durga |
| Click to view more | |
Product Details
Condition
New
Application
Water Well Drilling
Warranty
12 Months
After-Sales Service Provided
Yes at site 4 service in year
Country of Origin
India
Product Code
DT 1000
Port
mundra
Payment Terms
L/C, T/T
Delivery Time
6 Weeks

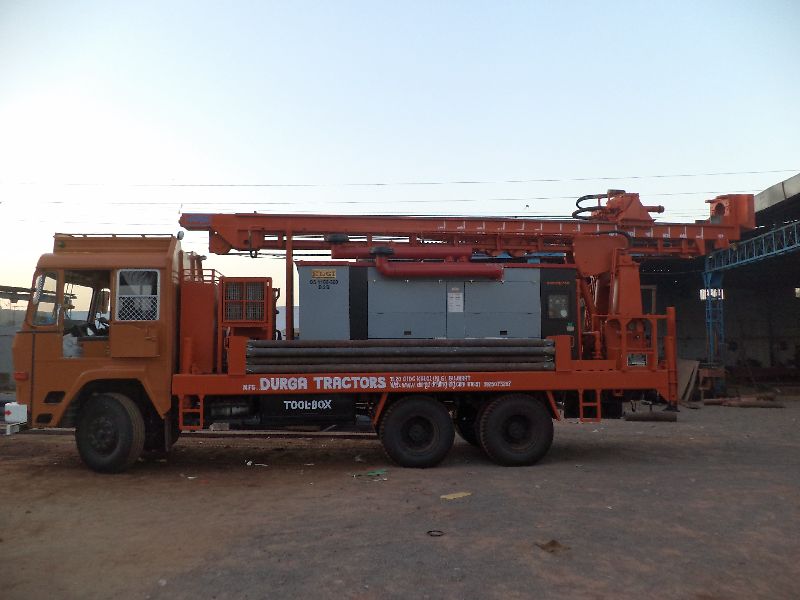

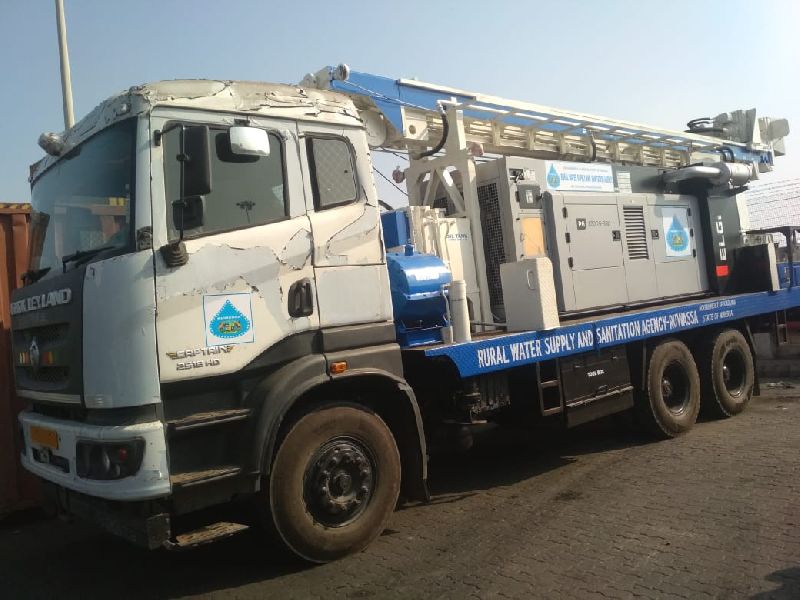

We are enlisted among the preeminent Manufacturers, Suppliers and Exporters of Down Hole Hammer Drilling Rigs. The Rigs we make available known for their strong engineering design. Our Rig comes with side control panel and water seivel. Bulk orders of these are processed by us as per the specific requirements of the buyers.
Types :
- DT-300
- DT-500
- DT-700
- DT-1000
- DT-1500
- DT-2000
- DT- 2000 super
Technical Specifications
| Durga Drilling rig | Technical Specification | Technical Specification | Technical Specification |
| MODEL | DT - 1500. speed star | DT - 2000 | DT - 2000 SUPER |
| Depth capacity | 400 mtr | 600mtr | 15.8 gpm. |
| Hydraulic Pump | 65 gpm. - 2 Nos.(gear pump) | 65 gpm. 2nos. | 65 gpm. - 2 Nos.piston |
| 15.8 gpm. | 15.8 gpm. | 15.8 gpm. | |
| Hydraulic cylinders | Feed Cylinder -180mm | Feed Cylinder -180mm | Feed Cylinder -200mm |
| ( wipro/ Dantel/durga) | M.R Cyl. - 140 mm | M.R Cyl. - 125 mm 2nos. | M.R Cyl. -125 mm -2nos. |
| levelling- 140mm- 4nos. | levelling- 140mm- 4nos. | levelling- 140mm- 4nos. | |
| Wire Rope | 37/6 20 mm. | 37/6 20 mm. | 37/6 20 mm. |
| Hydraulic Motor | OMV 400-2 | OMT 315 – 2. | OMV 400 – 2 |
| Rotary Head | Special 120MM Design with threeBearing. | Special 140MM Design with threeBearing. | Special 140MM Design with threeBearing. |
| Rod Spanner | 4 ½’’ - 2 Nos. | 4 ½’’ & 5-1/2"-- 2 nos | 4 ½’’ & 5-1/2"-- 2 nos |
| Adeptor | 4 ½ ’’ - 1 No | 4 ½ ’’ - 1 No. | 4 ½ ’’ - 1 No. |
| 5 ½’’ - 1 Nos. | 5 ½’’ - 1 Nos. | ||
| Rod Carrier | 4 ½ ’’ - 1 No. | 4 ½ ’’ - 1 No. | 4 ½ ’’ - 1 No. |
| 5 ½’’ - 1 Nos. | 5 ½’’ - 1 Nos. | ||
| Centrulizer | 4 ½ ’’ - 1 No. | 4 ½ ’’ - 1 No. | 4 ½ ’’ - 1 No |
| guide | 5 ½’’ - 1 Nos | 6 ½ ’’ - 1 No. | |
| 7 ½’’ - 1 Nos. | 7 ½’’ - 1 Nos. | 7 ½’’ - 1 Nos. | |
| Control Valve | Imported Italian | Imported Italian | Imported Italian |
| Water Pump | 100 LPM Capacity | 100 LPM Capacity | 100 LPM Capacity |
| Capacity to drill | 6'' to 14'' bore hole | 6'' to 14'' bore hole | 6'' to 14'' bore hole |
| Pull up force | 36000 kg @ 150 bar | 42000 kg @ 150 bar | 47000 kg @ 150 bar |
| Pull down force | 26000 kg @ 150 bar | 30600 kg @ 150 bar | 34800 kg @ 150 bar |
| Max. pull up speed | 80 ft / min | 80 ft / min | 80 ft / min |
| Max rotation torque | 86000 in lbs | 66000 In lbs | 86000 in lbs |
| Max Rotation speed | 0 to 100 rpm | 0 to 100 rpm | 0 to 100 rpm |
| Mud pump | optional extra cost | optional | optional |
| Centrifugal pump` | optional extra cost | standard | standard |
| Brake out cylinder | standard | standard | standard |
| Winch | standard | standard | standard |
| Rod changer | optional extra cost | standard | standard |
| Welding generator | optional extra cost | standard | standard |
| Mast load capacity | 25tons | 30 tons | 40 tons |
| 10" channel mast | 12" channel mast | 12" channel mast | |
| Mast | length- 27 ft. | length- 27 ft. | length- 27 ft. |
| double wire rope | Double Rope | Triple Wire Rope | |
| Platform | 10" bending plateform | 10" bending plateform | 10" bending plateform |
| 5 mm checker plate | 6 mm checker plate | 6 mm checker plate | |
| MODEL | DT – 700 | DT - 1000. | DT - 1000. super |
| Depth capacity | 200 mtr | 300mtr | 300mtr |
| Hydraulic Pump | 45 /38 gpm. Yuken | 65 gpm & 45 gpm (vane) | 65 gpm..+ 45gpm( vane) |
| 15.8 gpm. Dowty | 15.8 gpm. | 15.8 gpm. | |
| Hydraulic cylinders | Feed Cylinder -125mm | Feed Cylinder -140mm | Feed Cylinder -160mm |
| ( wipro/ Dantel/durga) | M.R Cyl. - 100 mm | M.R Cyl. - 125 mm | M.R Cyl. - 125 mm |
| levelling- 100mm- 4nos. | levelling- 125mm- 4nos. | levelling- 140mm- 4nos | |
| Wire Rope | 16 MM | 37/6 20 mm. | 37/6 20 mm. |
| Hydraulic Motor | OMT 315 – 1. | OMV-400 | OmT 315 – 2. |
| Rotary Head | Special 120MM Design | Special 120MM Design | Special 120MM Design |
| with two Bearing | with threeBearing | with threeBearing | |
| Rod Spanner | 2 -7/8’’ - 2 Nos. | 4 ½’’ - 2 Nos. | 4 ½’’ - 2 Nos. |
| Adeptor | 2- 7/8" - 1 No. | 4 ½ ’’ - 1 No. | 4 ½ ’’ - 1 No. |
| Rod Carrier | 2- 7/8 ’’ - 1 No. | 4 ½ ’’ - 1 No. | 4 ½ ’’ - 1 No. |
| Centrulizer | 2-7/8 ’’ - 1 No. | 4 ½ ’’ - 1 No. | 4 ½ ’’ - 1 No. |
| guide | 4 ½ ’’ - 1 No. | ||
| Control Valve | SM 18 Rexroth | Imported Italian | Imported Italian |
| Water Pump | 40 LPM Capacity | 100 LPM Capacity | 100 LPM Capacity |
| Capacity to drill | 2'' to 6 '' bore hole | 6'' to 10 '' bore ho | 6'' to 10 '' bore hole |
| Pull up force | 15000 Kg @ 150 bar | 30000 kg @ 150 bar | 36000 kg @ 150 bar |
| Pull down force | 10600 kg @ 150 bar | 22600 kg @ 150 bar | 26000 kg @ 150 bar |
| Max. pull up speed | 200 ft. / Minute. | 150 ft / mi | 80 ft / min |
| Max rotation torque | 33,000 IN - ibs | 66000 In lbs | 66000 In lbs |
| Max Rotation speed | 0 to 100 rpm | 0 to 100 rpm | 0 to 100 rpm |
| Mud pump | optional | optional | optional |
| Centrifugal pump` | optional | optional | optional |
| Brake out cylinder | yes | standard | standard |
| Winch | optional | yes | optional |
| Rod changer | optional | optional | optional |
| Welding generator | optional | optional | optional |
| Mast load capacity | 10 tons | 18 tons | 18 tons |
| 8" channel mast. | 10" channel mast | 10" channel mast | |
| Mast | length- 27 ft. | length- 27 ft. | length- 27 ft. |
| ( single wire rope) | single rope | double wire rope | |
| Platform | 8" bending paltform | 10" bending plateform | 10" bending plateform |
| 5mm checker plate | 5 mm checker plate | 5 mm checker plate |
