Drill Rig Compressor

We are enlisted among the trusted Manufacturers, Suppliers and Exporters of Drill Rig Compressors. The Compressors offered by us are manufactured in compliance with set industrial norms. We maintain a large stock of the Rig Compressors in our warehouse in order to meet the bulk and urgent requirements of the buyers.

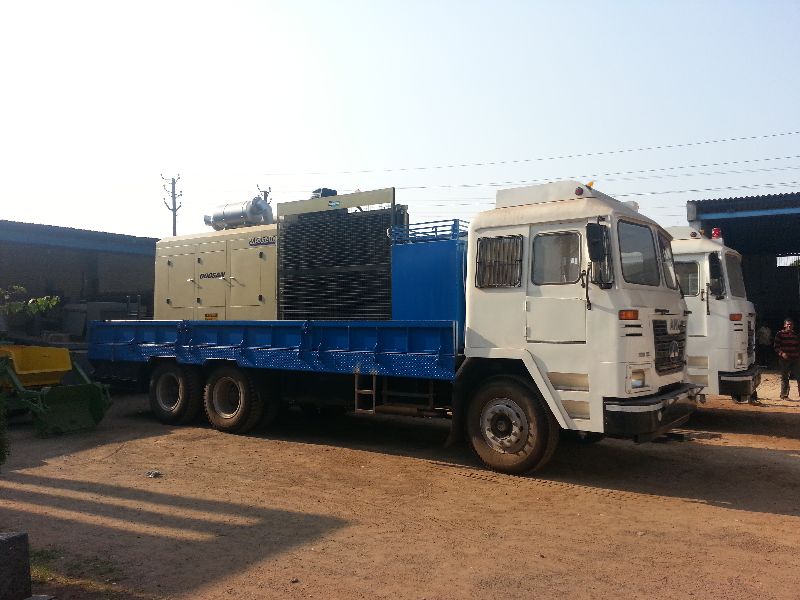

Description : Ingersoll-Rand make Prospair model 1200/320 SCU, Two stage, oil injected, asymmetric screw compressor, delivering 566.34 Liters/Sec (1200 cfm) free air delivery at 22.06 Bar / (320 psig) working pressure.The compressor unit is directly coupled to Cummins engine model NTA 855BCILL oil injected, diesel engine, through a flexible coupling. The complete unit is enclosed in a sheet metal canopy.

Specification :

• Free air delivery - 1200 cfm
• Rated operating pressure - 320 psig
• Unloading pressure - 340 psig
• Compressor type - Two stage, asymmetric screw
• Cooling system - Oil injection
• Regulation - Stepless
• Oil capacity - 150 liters
• Max. operating ambient temperature - 50^oC
• Min. operating ambient temperature - 5^oC
• Engine Make / model - NTA 855BCILL
• Strokes/Number of cylinders - 4 stroke, 6 cylinders
• Rated speed - 1900 RPM
• Low idle speed - 1100 RPM
• System oil capacity - 37 liters
• Electrical system - 24 V, Negative Ground
• Battery - 2 x 12 V, 180 AH
• Instrumentation - Safety
• Discharge pressure gauge - High air temperature shut down
• Discharge temperature gauge - Low engine oil pressure shut down
• Engine oil pressure gauge - High engine water temperature shut down
• Engine water temperature gauge - Safety valve on separator tank
• Tachometer
• Hour meter
• Airfilter vacuum indicator(engine and air end)

Dimensions & weights :

• Overall length - 5500 mm
• Overall width - 1850 mm
• Overall height - 2200 mm
